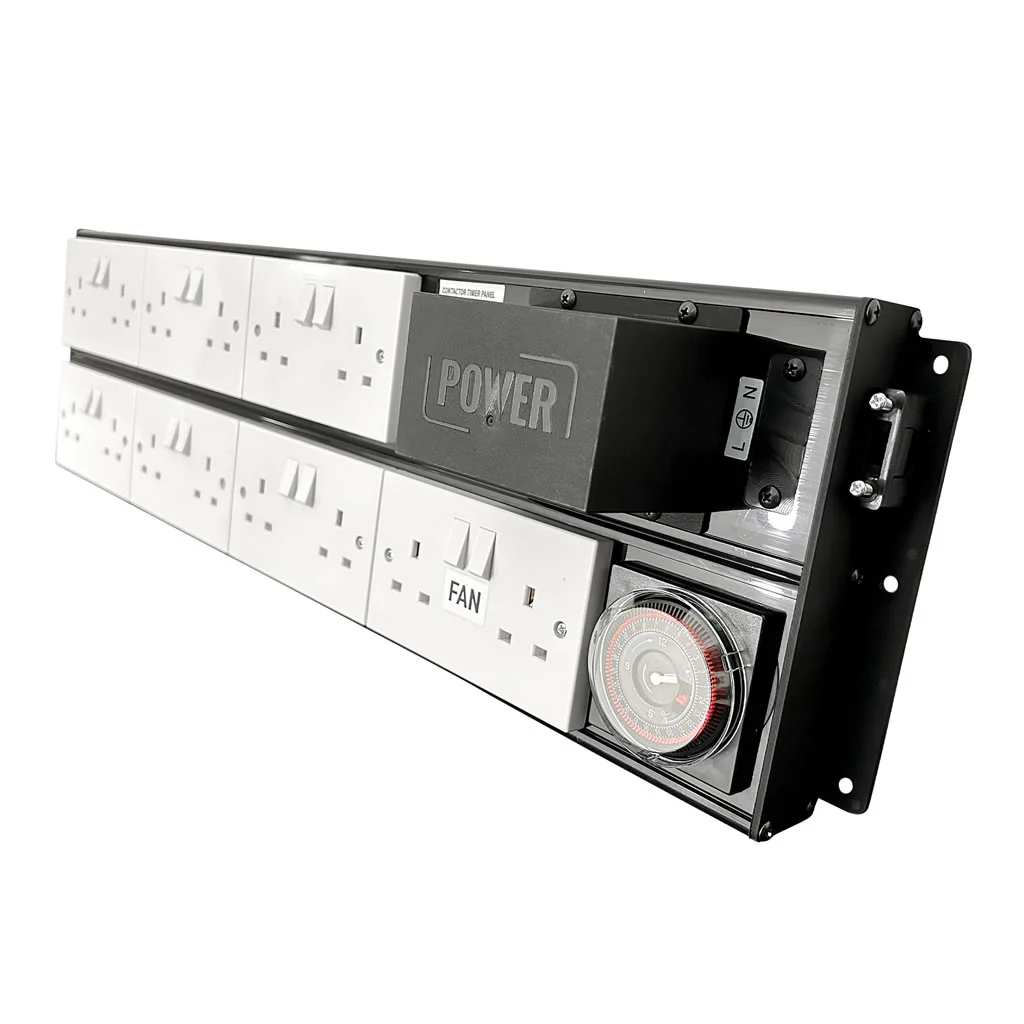

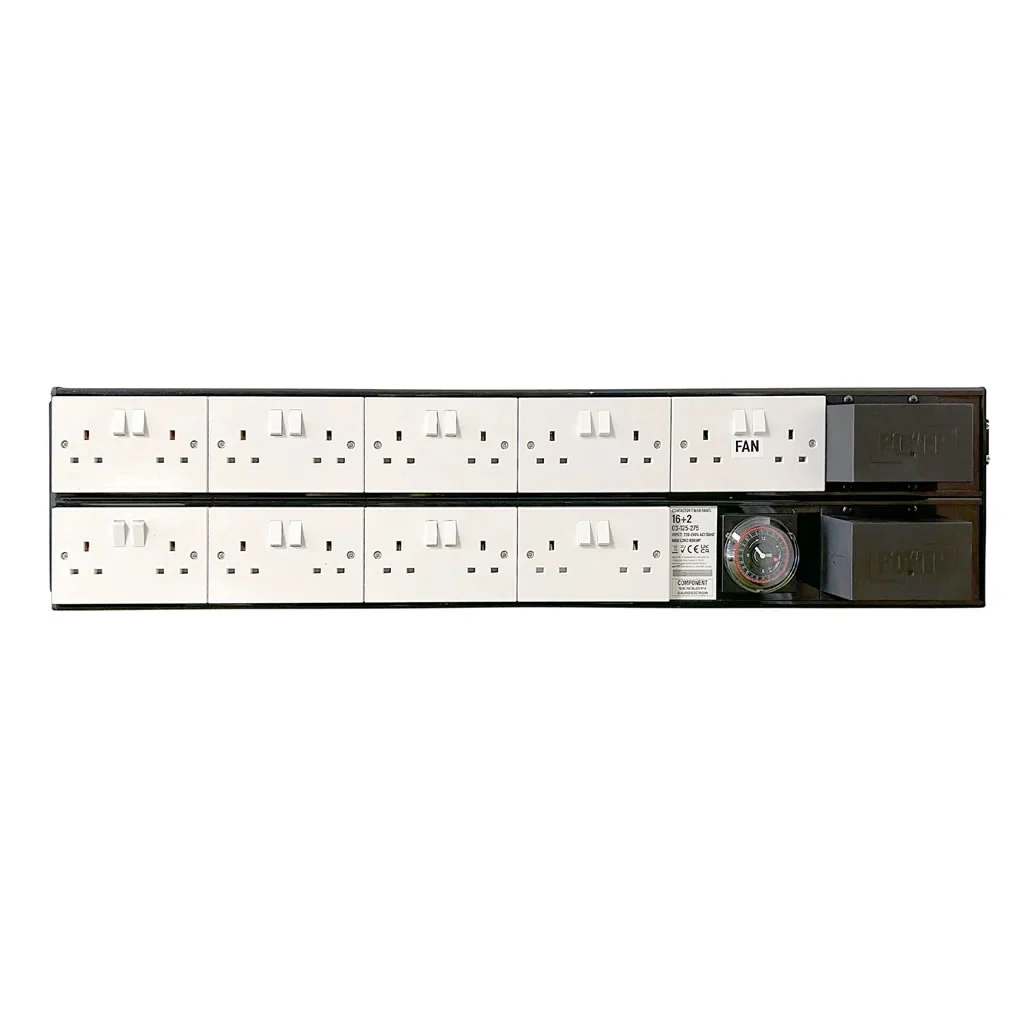

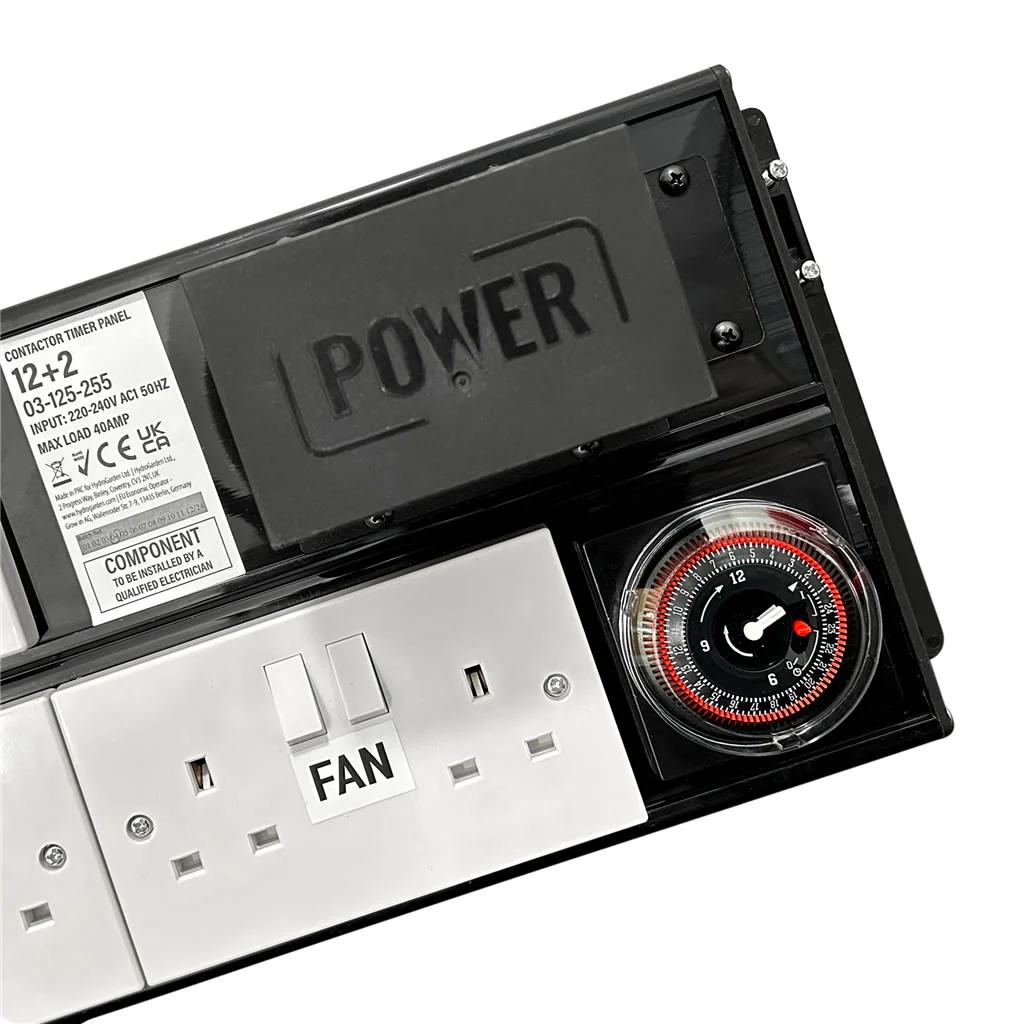

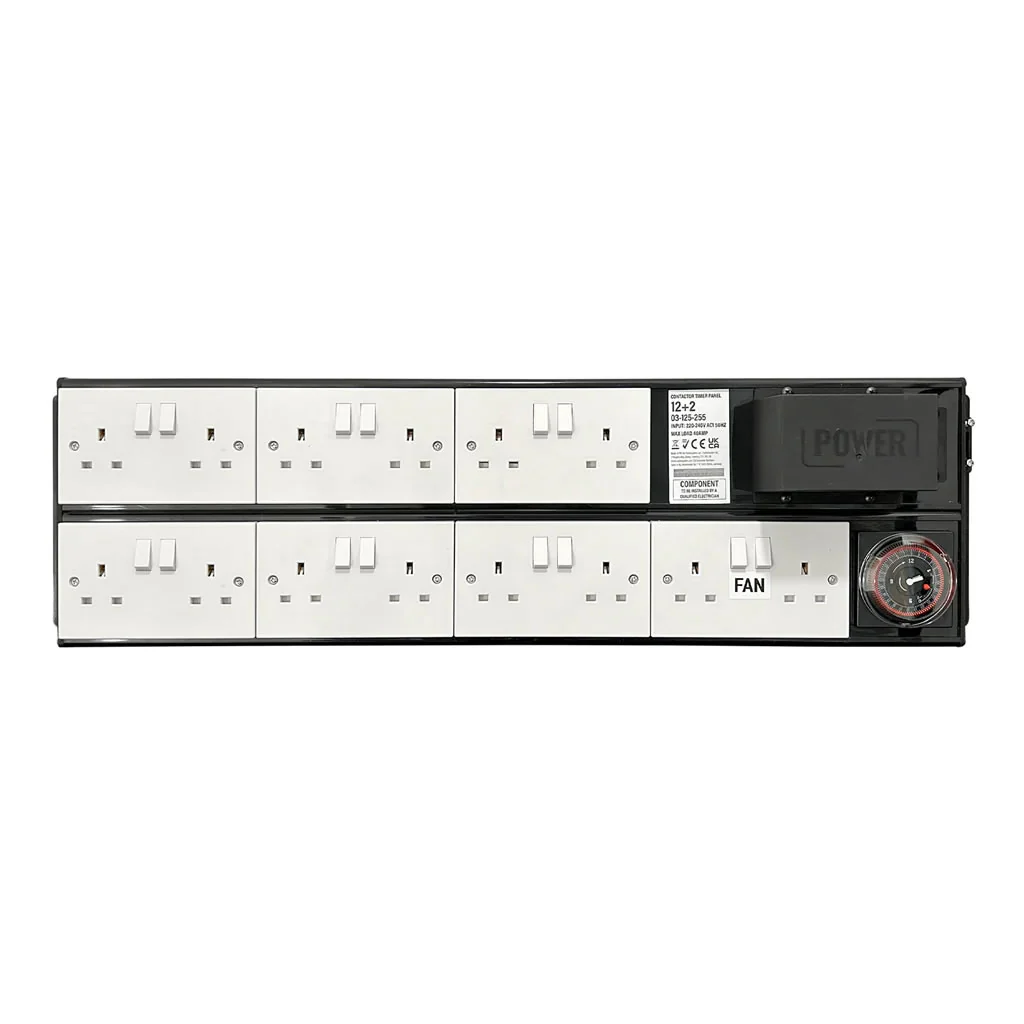

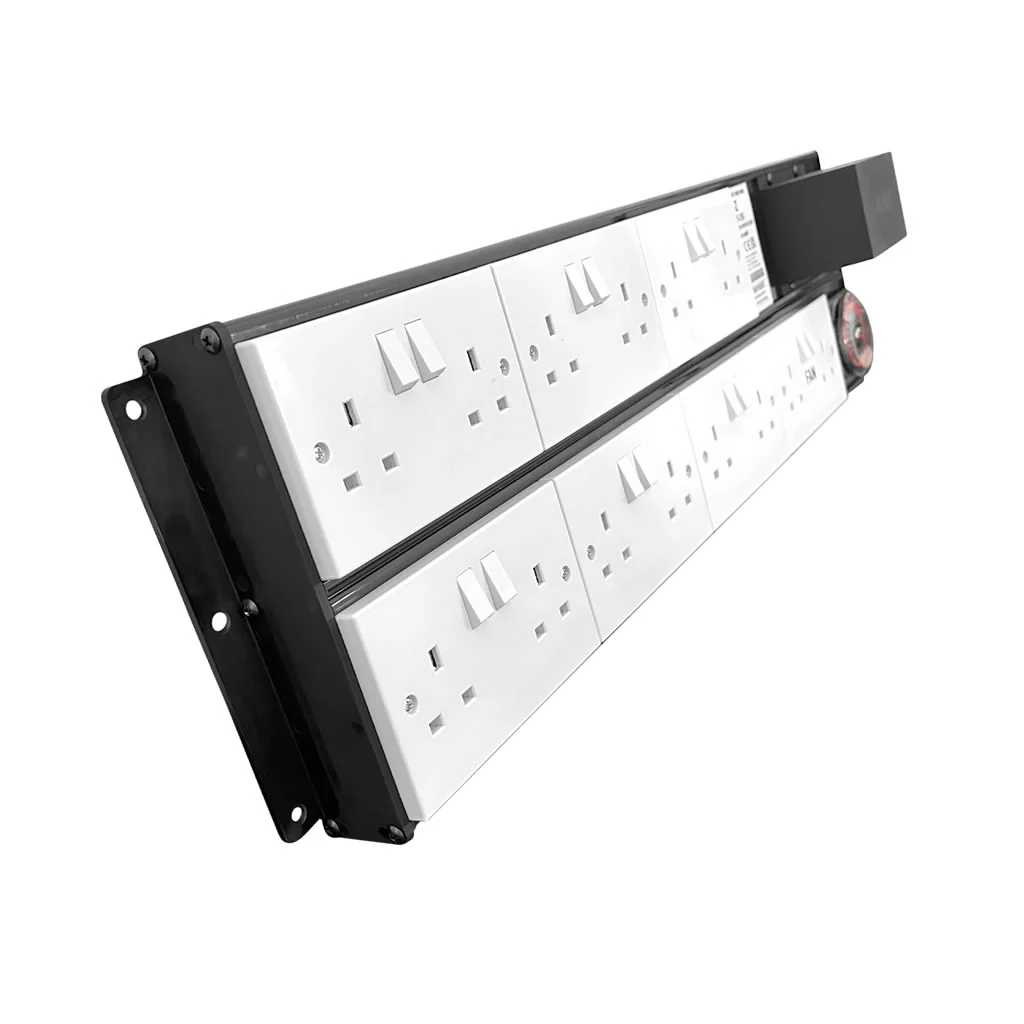

LUMII Timer Panel MDF Contactor Timer Board

The LUMII Timer Panel MDF Contactor Timer Board allows for scheduled operation of high-power appliances, while eliminating the risk of timer contact burnout. It must be installed by a qualified electrician or other professional to comply with local regulations. The panel can handle up to 12 or 16 appliances with a combined load of 40 amps and can be programmed to run synchronously over a 24-hour period. With 96 fifteen-minute segments, the timer offers the option of "timed", "continuously on", or "continuously off" settings. Additionally, there are 2 sockets labeled "FAN" that provide continuous power supply without timing capabilities.

Features:

• Suitable for scheduling appliances with high inductive loads
• Can schedule up to 12 or 16 appliances synchronously
• 2 untimed power outlet sockets
• Simple to operate

Technical Specifications:

• 220-240 V AC1
• 50/60 Hz
• Maximum load 40 A
• 12 or 16 timed output sockets
• 2 untimed output sockets
• Timer – 24 hr, 96 x 15-minute segments. Manual setting

FAQs:
Q: Can I attach a plug lead to this panel and plug it into a mains outlet socket?
A: No. This panel is an electrical component which must be hard-wired by an electrician or other competent person directly to a power distribution unit.
