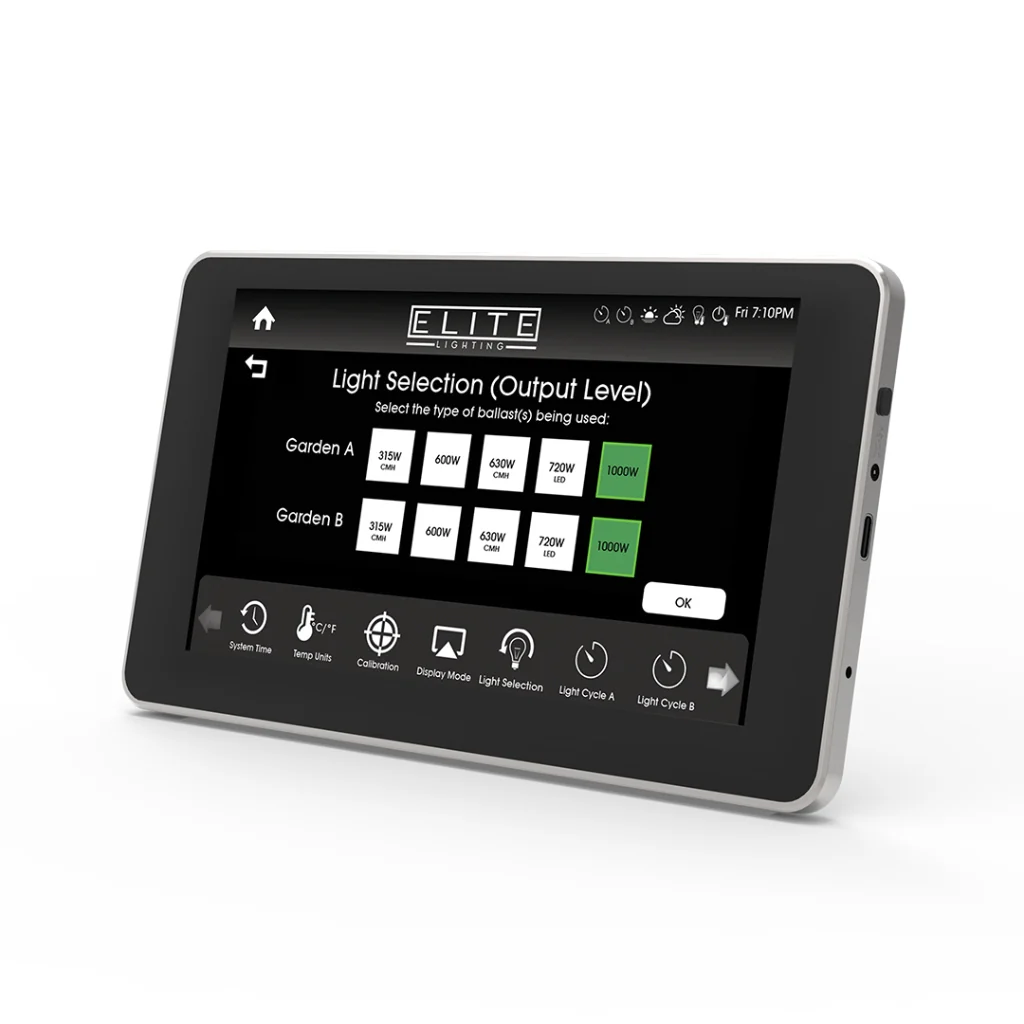

Elite PAD LED Grow Light Controller
The Elite PAD LED Grow Light Controller is a high-tech, high-quality touch screen lighting controller capable of controlling dual environments up to a maximum of 150 lights per environment.
Temperature Monitoring
The controller can be used to connect two temperature sensors to measure the temperature in the room. With one sensor the controller will be working in “Standard Mode” and with the other, the sensors will work in “Inverse” or “Optimum Mode”
The temperature sensor provided should be placed as close as possible to the sensor of the existing climate control system, this to ensure that both sensors will measure the same temperature. If there is a deviation, the temperature sensor can be calibrated in the Menu.
High Temperature Auto-Dim & Shutdown Temp
The “Auto-Save Temp” option senses when indoor temperatures are getting too high and responds automatically by dimming the connected lamps, reducing or avoiding environmental stress and crop damage.
The “Shutdown Temp” is an extra safety feature that will shut down all lighting in the room when the temperature is not reducing after the “Auto-Save Temp” has set in. Causes could be a malfunctioning extraction unit or climate control unit.
A manual resetting of the “Shutdown Temp” is then required to restart the system.
Be advised that the controller is not a replacement for climate control equipment, its primary use is only to prevent crop damage with the “Auto-Save Temp” and “Shutdown Temp” function.
Customise Rise and Fall Options
The Touchscreen controller simulates natural growing conditions with the “Rise/Fall” option, allowing plants to gradually warm up and cool down.
Independent Customisable Light Cycles (2 Zones)
The two Garden light-cycles can run separate schedules, ideal to control a vegetative and flower cycle. Garden B can follow/copy the Garden A light-cycle, inverse (flip), or run a custom schedule independent of Garden A. An inverse light-cycle is used to alternate light-cycles between 2 rooms on a 12/12 room cycle. For ‘Inverse Mode’, light-cycles must be set to 12 hours on, 12 hours off.
Standard & Asynchronous Timer Capability
Timer setup can be standard 24H or non-24H days. Simulate daylight hours or reduce time to harvest by using the asynchronous timer.
Elite Features
- Easy programming
- Simple touchscreen operation
- Data logging of changes and events
- Accurate temperature monitoring
- Auto-dim temp / shutdown temp
- Rise & Fall options
- Independent customised light cycles (2 zones)
- Asynchronous timer
- Chose between °C and °F
Original: $333.29
-65%$333.29
$116.65
Description
The Elite PAD LED Grow Light Controller is a high-tech, high-quality touch screen lighting controller capable of controlling dual environments up to a maximum of 150 lights per environment.
Temperature Monitoring
The controller can be used to connect two temperature sensors to measure the temperature in the room. With one sensor the controller will be working in “Standard Mode” and with the other, the sensors will work in “Inverse” or “Optimum Mode”
The temperature sensor provided should be placed as close as possible to the sensor of the existing climate control system, this to ensure that both sensors will measure the same temperature. If there is a deviation, the temperature sensor can be calibrated in the Menu.
High Temperature Auto-Dim & Shutdown Temp
The “Auto-Save Temp” option senses when indoor temperatures are getting too high and responds automatically by dimming the connected lamps, reducing or avoiding environmental stress and crop damage.
The “Shutdown Temp” is an extra safety feature that will shut down all lighting in the room when the temperature is not reducing after the “Auto-Save Temp” has set in. Causes could be a malfunctioning extraction unit or climate control unit.
A manual resetting of the “Shutdown Temp” is then required to restart the system.
Be advised that the controller is not a replacement for climate control equipment, its primary use is only to prevent crop damage with the “Auto-Save Temp” and “Shutdown Temp” function.
Customise Rise and Fall Options
The Touchscreen controller simulates natural growing conditions with the “Rise/Fall” option, allowing plants to gradually warm up and cool down.
Independent Customisable Light Cycles (2 Zones)
The two Garden light-cycles can run separate schedules, ideal to control a vegetative and flower cycle. Garden B can follow/copy the Garden A light-cycle, inverse (flip), or run a custom schedule independent of Garden A. An inverse light-cycle is used to alternate light-cycles between 2 rooms on a 12/12 room cycle. For ‘Inverse Mode’, light-cycles must be set to 12 hours on, 12 hours off.
Standard & Asynchronous Timer Capability
Timer setup can be standard 24H or non-24H days. Simulate daylight hours or reduce time to harvest by using the asynchronous timer.
Elite Features
- Easy programming
- Simple touchscreen operation
- Data logging of changes and events
- Accurate temperature monitoring
- Auto-dim temp / shutdown temp
- Rise & Fall options
- Independent customised light cycles (2 zones)
- Asynchronous timer
- Chose between °C and °F
