Introducing the Aero-Fan PRO Grow room fan ventilation extraction Inline Duct Ventilation Fan Available in 10", 12" size grow fans. The Trolmaster Aero Fan PRO EC Extraction Fan is a compact and efficient fan that is designed to improve air circulation and ventilation in indoor spaces. Its powerful motor allows it to move a significant volume of air, removing stale air and humidity. This versatile fan can be easily installed in various duct systems, ensuring a fresh and comfortable environment. It is an ideal solution for maintaining optimal indoor air quality and is commonly used in grow room settings.

PRICING IS AN ESTIMATE. Sign up to be notified further.

What Sets It Apart?

Equipped with universal voltage sensing (100-277VAC), this extraction fan effortlessly adjusts to global standards for maximum compatibility and energy efficiency. With the ability to operate at higher voltages up to 277Volts, the Aero-Fan minimizes inrush current and reduces installation and operating expenses without sacrificing performance. Additionally, its automatic voltage sensing feature allows for seamless integration in both residential and factory environments..

Speed Control

Built-in Digital Speed Control: By integrating digital speed control, Aero-Fan eliminates the need for Variable Frequency Drives (VFDs). Precisely adjust fan speeds from 0-100% in 1% increments, accommodating daily and nightly speed control options.

Controller Compatibility

Expand control options by pairing your Aero-Fan with TrolMaster Systems. Maximize efficiency with custom fan setups and independent operation for multiple groups of fans. Utilize the Spray Mode feature for automatic adjustment between airflow and off periods, optimizing airflow with ease.

Smart Fan Remote with Built-in Photocell for Day/Night Setting

Get controllability of your AeroFans using the FRC-1. This remote controller comes with a photocell sensor, a small LCD screen, and a knob to adjust the fan speed. Set your day and night settings using the FRC-1, adjust the power you’d like the fans to be at, and if using an oscillating fan from Aero-Fan, easily switch between the swing modes with the remote.

Controlling Aero-Fans using TrolMaster Hydro-X Pro

Two connection options are available for users to connect their Aero-Fan groups to the Hydro-X Pro (HCS-2) controller. The first option is to directly connect one fan group to the HCS-2 using the TrolMaster ECS-9 cable set, without the need for the optional Smart Fan Remote (FRC-1) manual control module. Alternatively, users can also choose to connect both the FRC-1 and the HCS-2 to each group of fans by using the TrolMaster ECS-7 and ECS-9 cable sets. The FRC-1 features a manual speed control knob and a digital display showing the fan speed. Any changes made to the fan speed using the FRC-1 will remain in effect for 30 minutes before returning to the control of the HCS-2.

Whether you are using the FRC-1, or directly connecting your fans to the HCS-2 is up to you. Aero-Fan provides multiple options and settings you can select from in order to customize how those fans will be operated. Multiple groups of fans can be connected and controlled using the HCS-2 controller and multiple FRC-1s.

*ECS-7 Cable is included with the Aero-Fan

*ECS-9 Cable is included with the FRC-1 Smart Remote

Warranty

This product offers a 3-year warranty, backed by powerful motors, to ensure exceptional air flow, minimal noise, and long-lasting functionality. For unparalleled efficiency and reliability in air circulation, trust Aero-Fan.

Specifications:

V-6 (6-Inch)

Operating Voltage	100-277VAC, 50/60Hz
Rated Current	1.0 A
Rated Input Power	66W
No. of Blades	8
Max Air Flow	360 cfm
Max Static Air Pressure	459Pa
Rotating Direction	Counter Clock-Wise
Operating Temperature	-4~140°F
Mean Time to Failure	50000H (25°C)
IP Rating	IP44
Dimensions	12.48" x 8.89" x 5.79"
Net Weight	2.03KG/4.48lb

V-8 (8-Inch)

Operating Voltage	100-277VAC, 50/60Hz
Rated Current	1.8 A
Rated Input Power	182W
No. of Blades	10
Max Air Flow	684 cfm
Max Static Air Pressure	735Pa
Rotating Direction	Counter Clock-Wise
Operating Temperature	-4~140°F
Mean Time to Failure	50000H (25°C)
IP Rating	IP44
Dimensions	12.09" x 9.57" x 7.80"
Net Weight	3.1KG/6.83lb

V-10 (10-Inch)

Operating Voltage	100-277VAC, 50/60Hz
Rated Current	2.7 A
Rated Input Power	268W
No. of Blades	10
Max Air Flow	971 cfm
Max Static Air Pressure	956Pa
Rotating Direction	Counter Clock-Wise
Operating Temperature	-4~140°F
Mean Time to Failure	50000H (25°C)
IP Rating	IP44
Dimensions	15.31" x 11.26" x 9.70"
Net Weight	6.5KG/14.33lb

V-10M (10-Inch Pro)

Operating Voltage	100-277VAC, 50/60Hz
Rated Current	1.94 A
Rated Input Power	210W
No. of Blades	7
Max Air Flow	1014 cfm
Max Static Air Pressure	770Pa
Rotating Direction	Counter Clock-Wise
Operating Temperature	-4~140°F
Mean Time to Failure	50000H (25°C)
IP Rating	IP44
Dimensions	13.78" x 12.20" x 9.65"
Net Weight	4.51kg/ 9.94lb

V-12 (12-Inch)

Operating Voltage	100-277VAC, 50/60Hz
Rated Current	2.6 A
Rated Input Power	268W
No. of Blades	8
Max Air Flow	1180 cfm
Max Static Air Pressure	779Pa
Rotating Direction	Counter Clock-Wise
Operating Temperature	-4~140°F
Mean Time to Failure	50000H (25°C)
IP Rating	IP44
Dimensions	17.87" x 14.06" x 12.26"
Net Weight	8.0KG/17.64lb

V-12M (12-Inch Pro)

Operating Voltage	100-277VAC, 50/60Hz
Rated Current	3.8 A
Rated Input Power	357W
No. of Blades	7
Max Air Flow	1579 cfm
Max Static Air Pressure	814Pa
Rotating Direction	Counter Clock-Wise
Operating Temperature	-4~140°F
Mean Time to Failure	50000H (25°C)
IP Rating	IP44
Dimensions	10.04" x 12.72" x 11.81"
Net Weight	6.55KG/14.44lb

EC Extraction Fans

Phresh Hyperfan Extraction Fan

Phresh Hyperfan Stealth V2 Extraction Fan

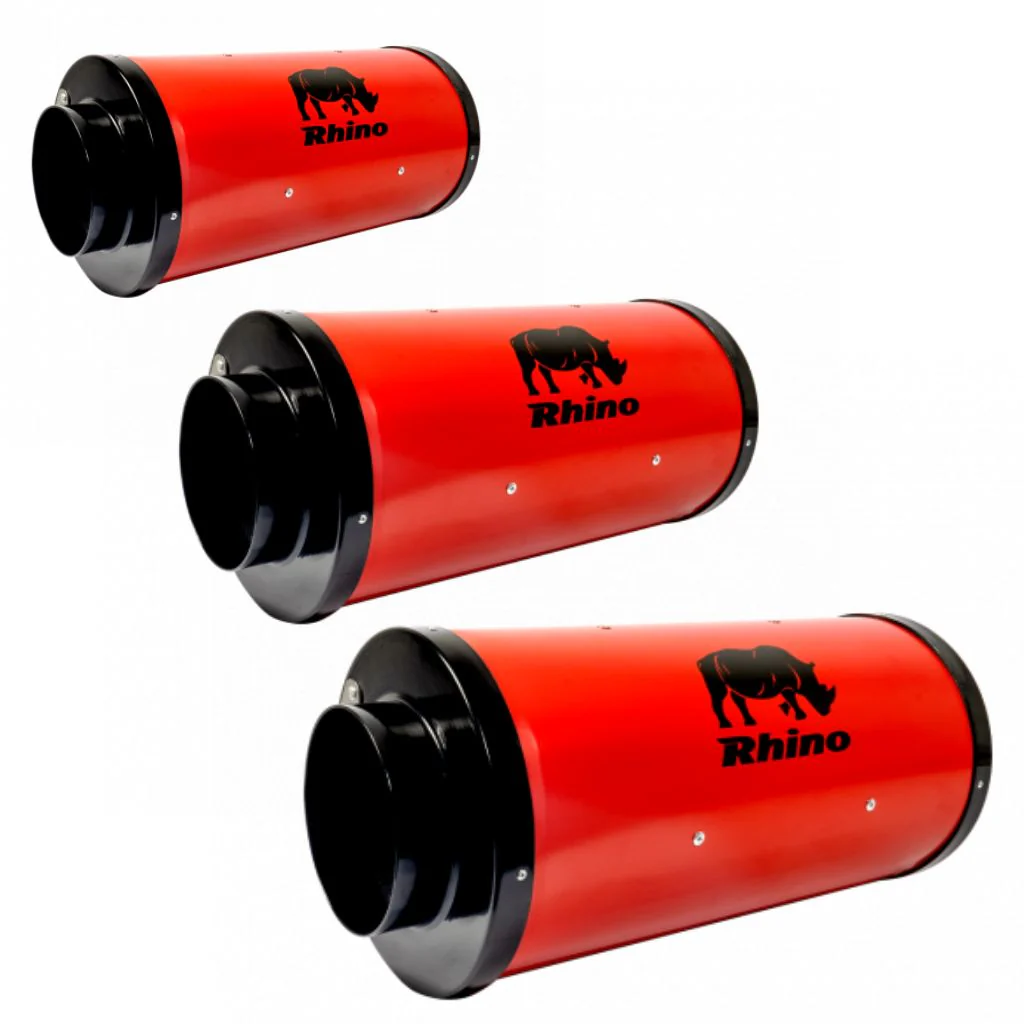

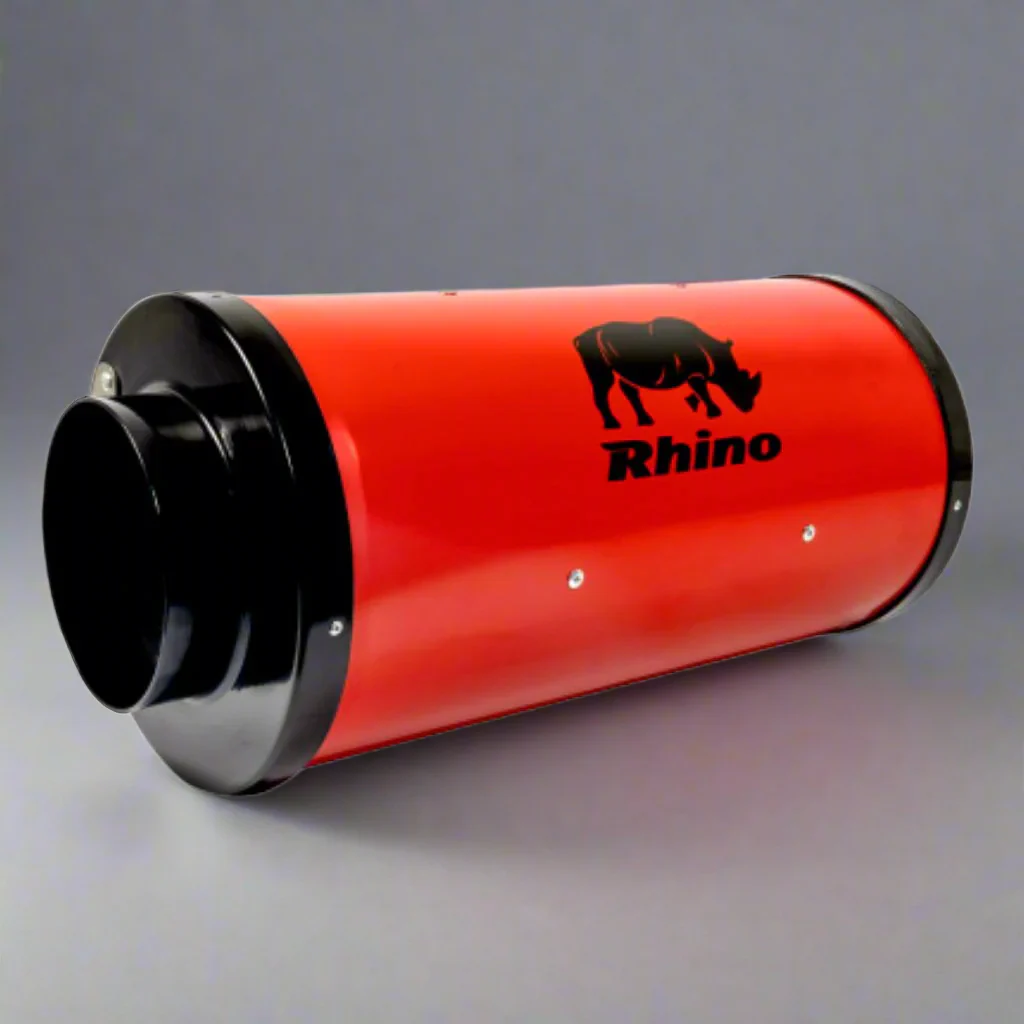

Rhino Ultra Silent EC Extraction Fan

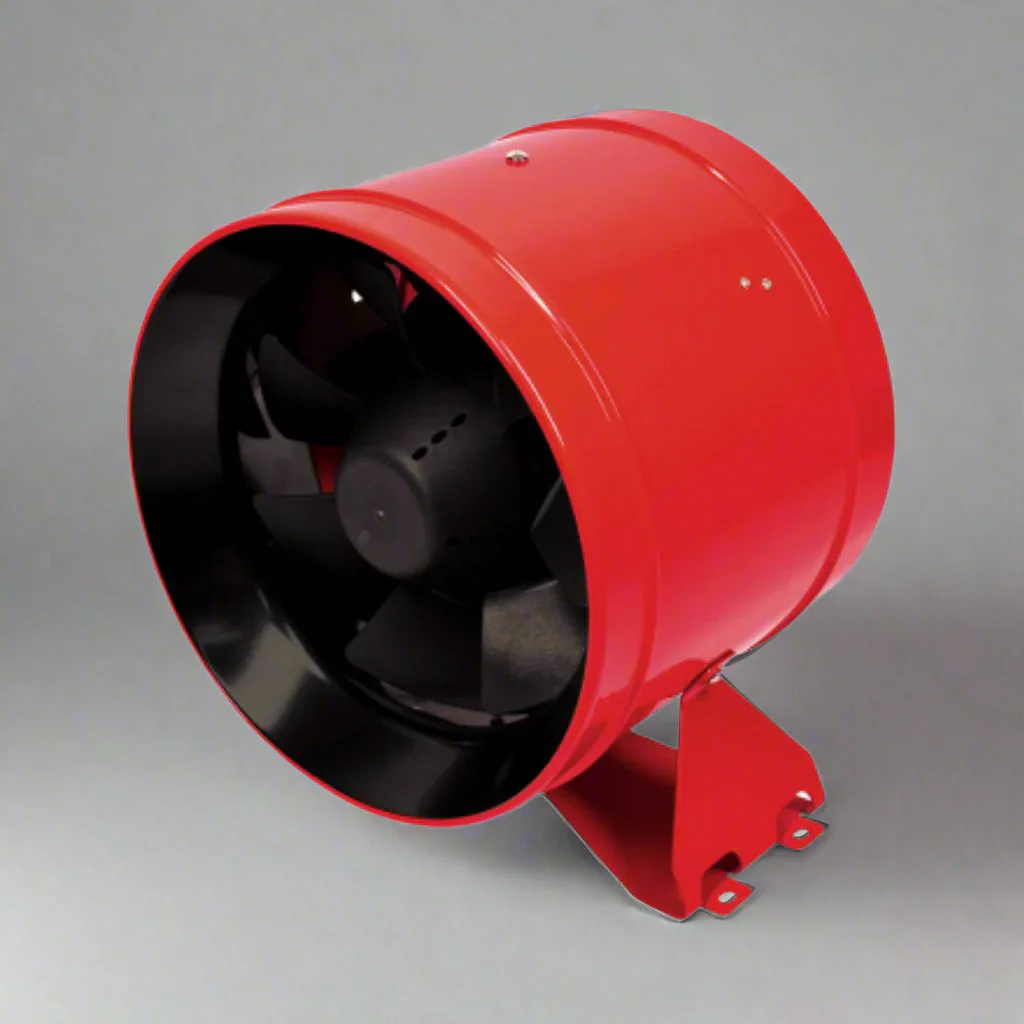

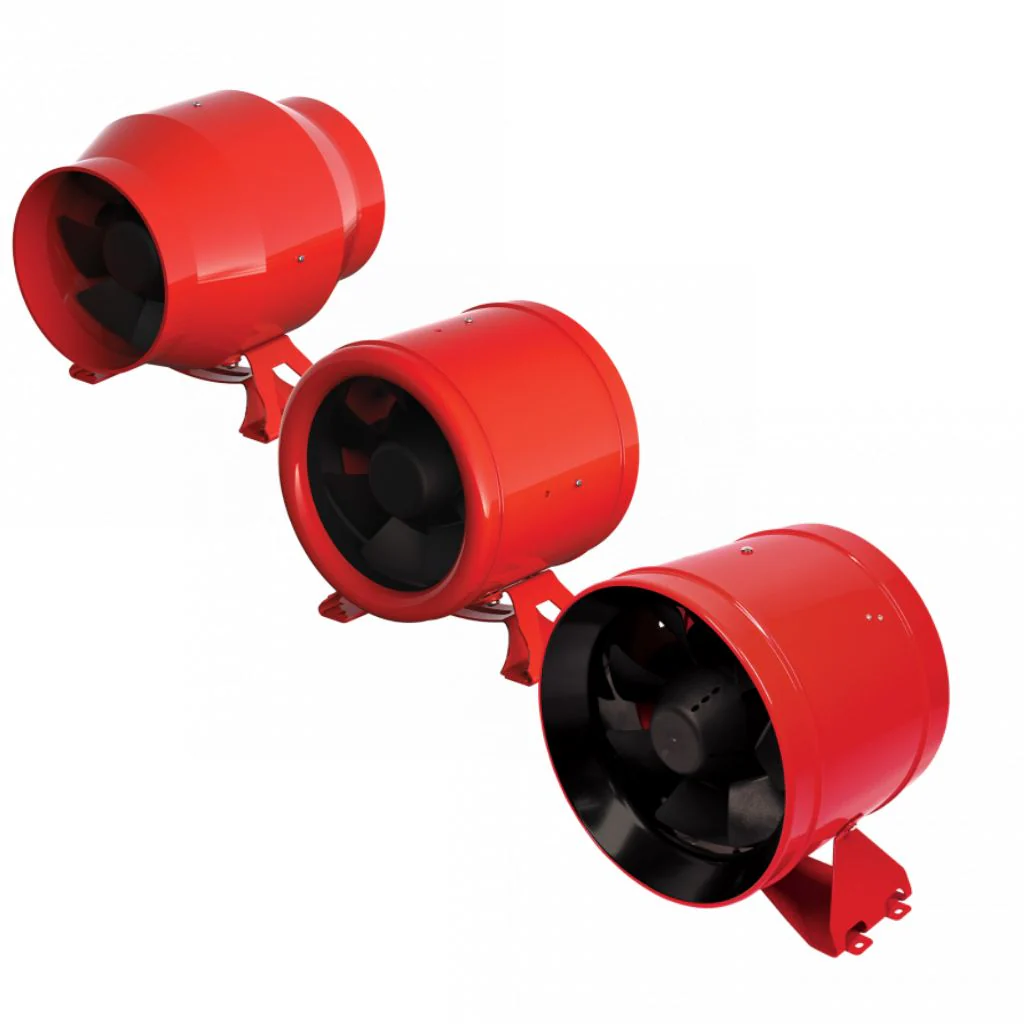

Rhino Ultra EC Extraction Fan

Revolution Vector EC Silenced V2 Extraction Fan

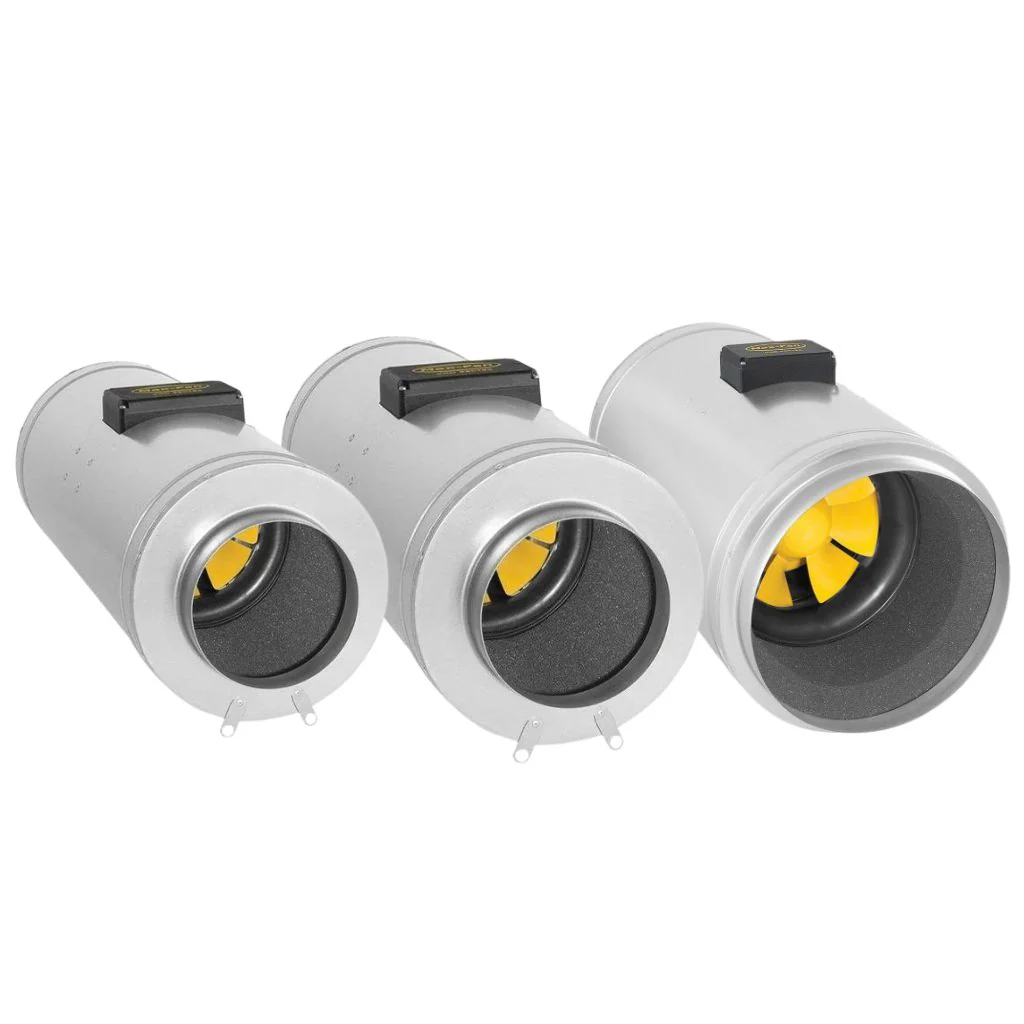

Can Q-Max Fan EC Extraction Fan

Revolution Vector EC Extraction Fan

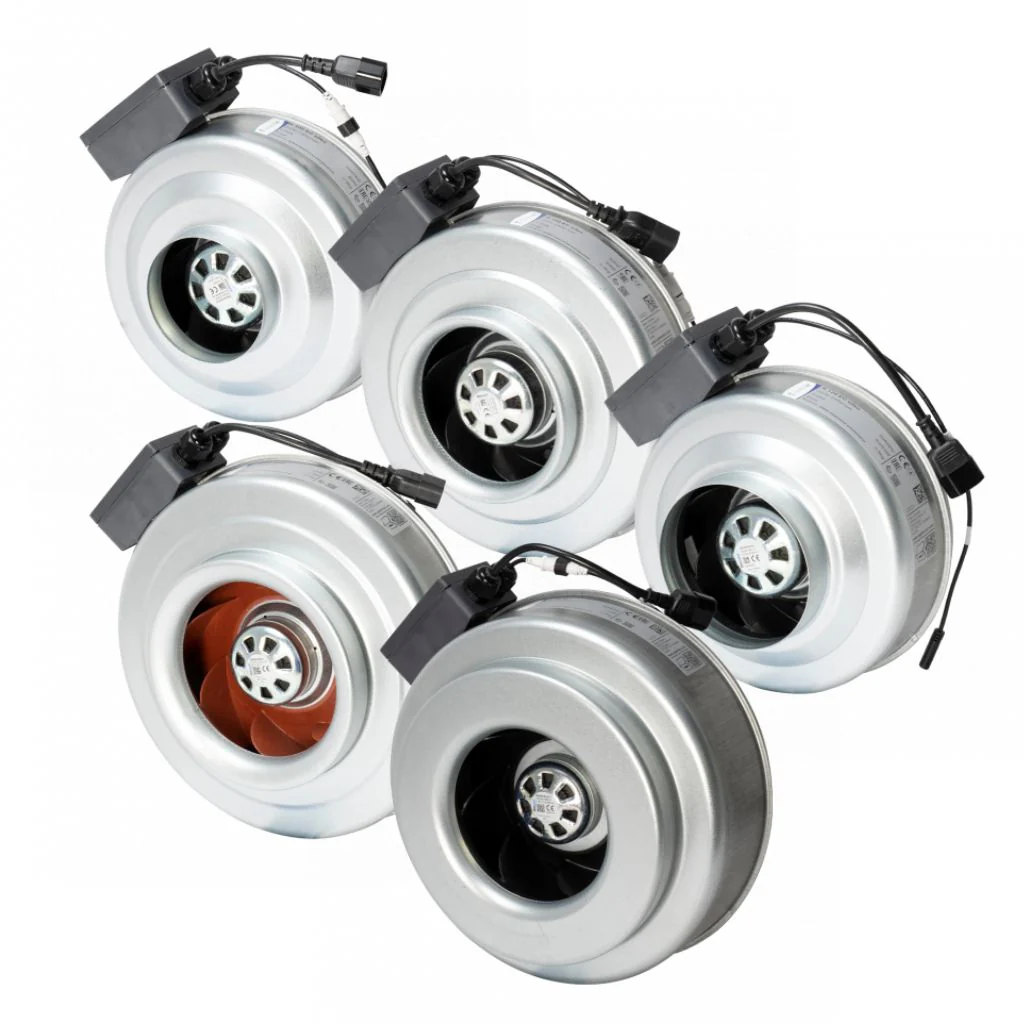

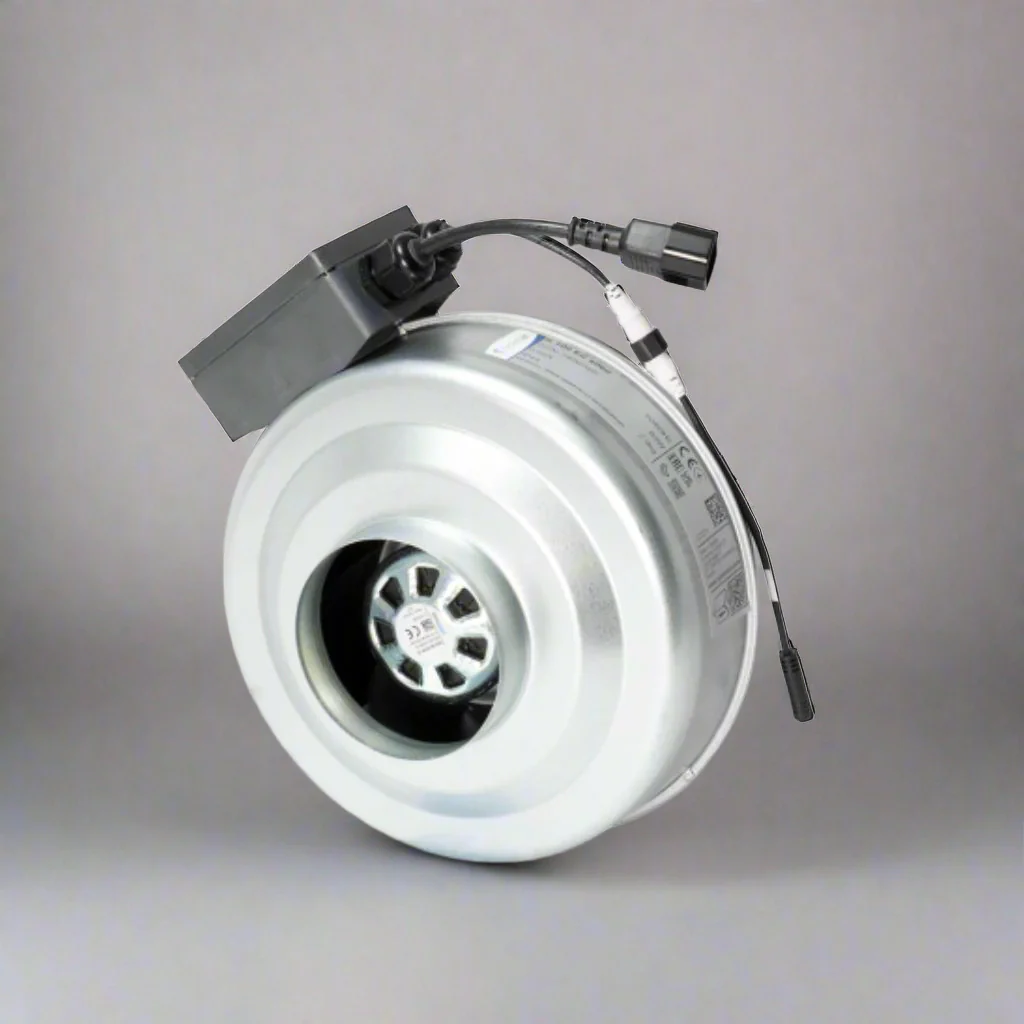

K-EC Extraction Fan

Revolution Vector EC 355MM 14 Inch 6000M3/H

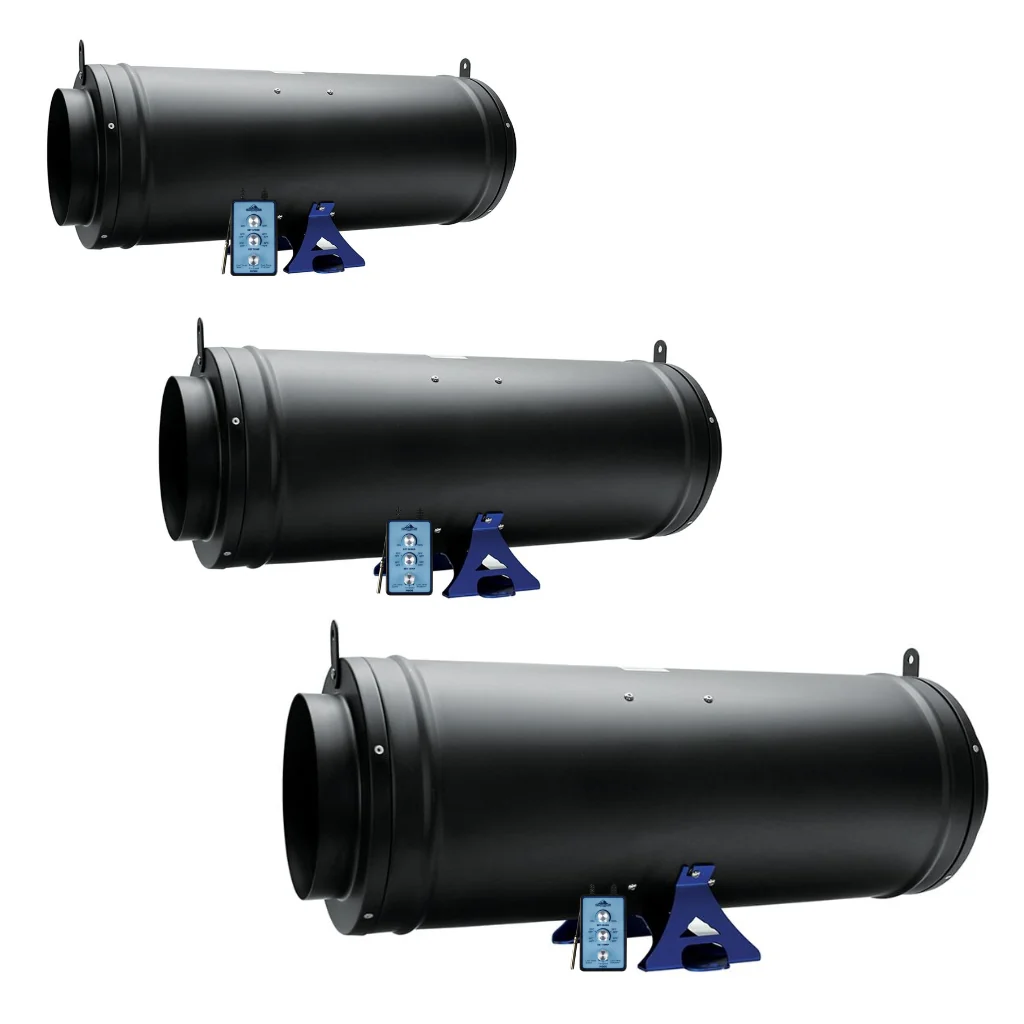

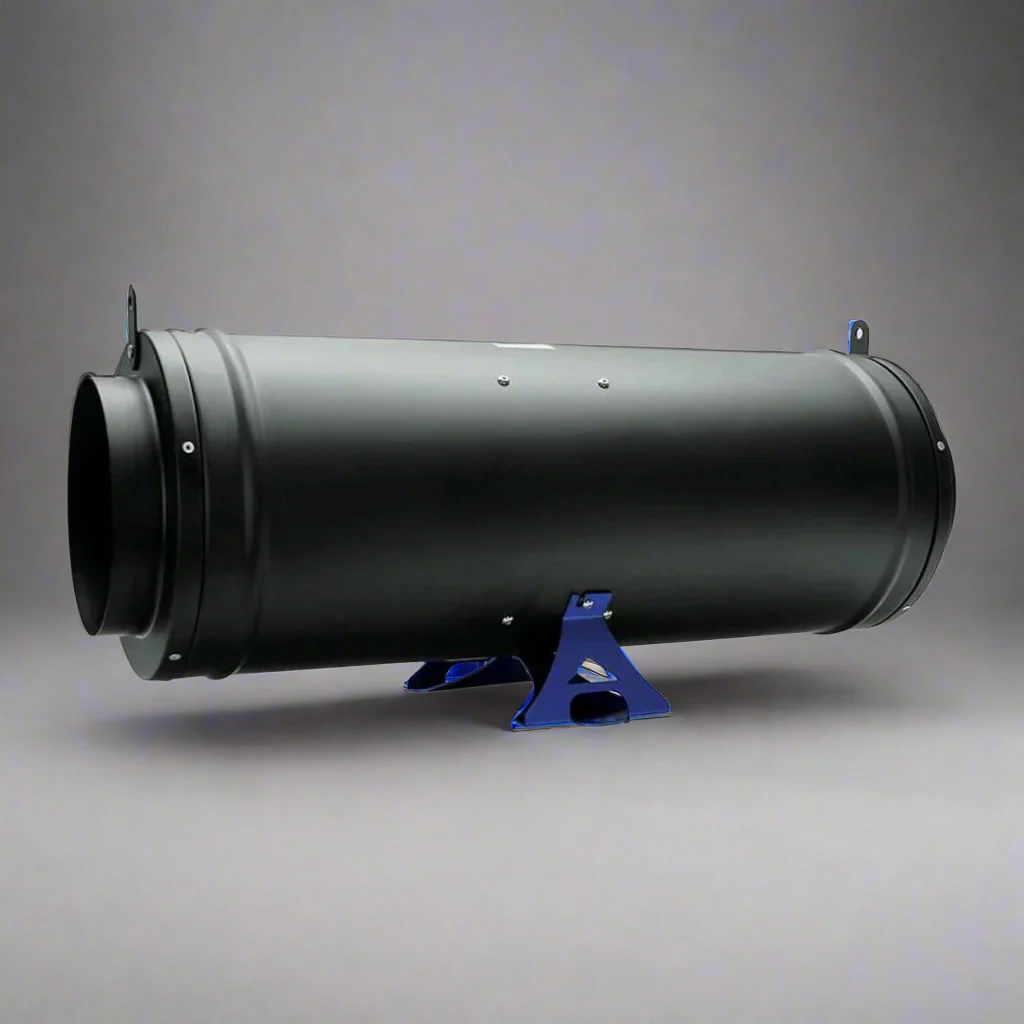

Mountain Air EC Whisper Silent Extraction Fan
